Non-oriented Silicon Steel

GRAIN-ORIENTED ELECTRICAL STEEL In a certain magnetization field, strong directivity, rolling direction of the lowest iron loss, the highest permeability, magnetic induction value is high.  Oriented silicon steel has a silicon content of about 3%. It also requires that the content of oxide inclusions in the steel be low and must contain certain inhibitors.

key word : Carbon steel Color Coated

Classification : Carbon steel


Whatsapp :+86 15153178073

E-mail : info@linxumetal.com

Details description

Electrical steel, usually referring to cold rolled electrical steel, can be divided into two major categories including grain oriented electrical steel and non-oriented electrical steel. Grain oriented electrical steel, with its easy magnetization direction parallel to the rolling direction, has excellent magnetic properties in this direction including low core loss, high permeability and low magnetostriction and is widely used in the transformer industry. Further it can obtain lower core loss by domain refinement treatment. Meanwhile non-oriented electrical steel, featured by random distribution of grain orientation and magnetic isotropy, is widely applicable to the motor industry.

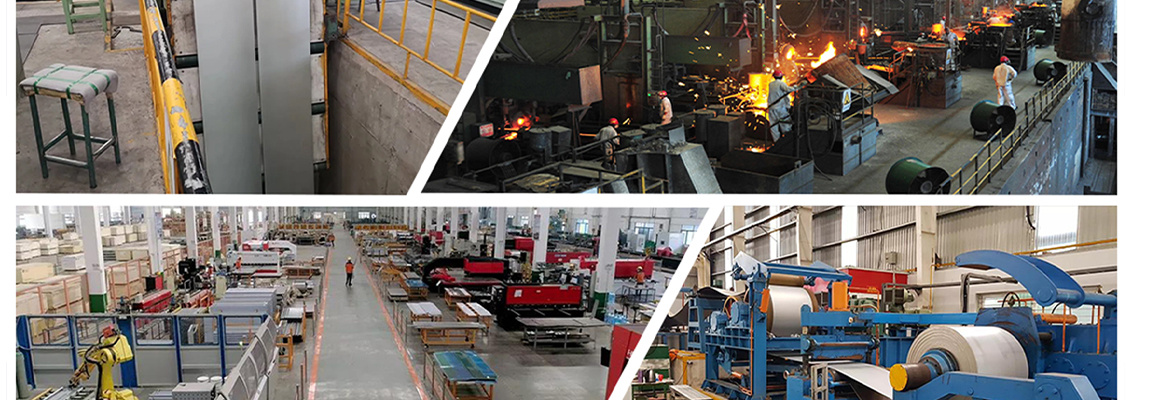

FACTORY DISPLAY

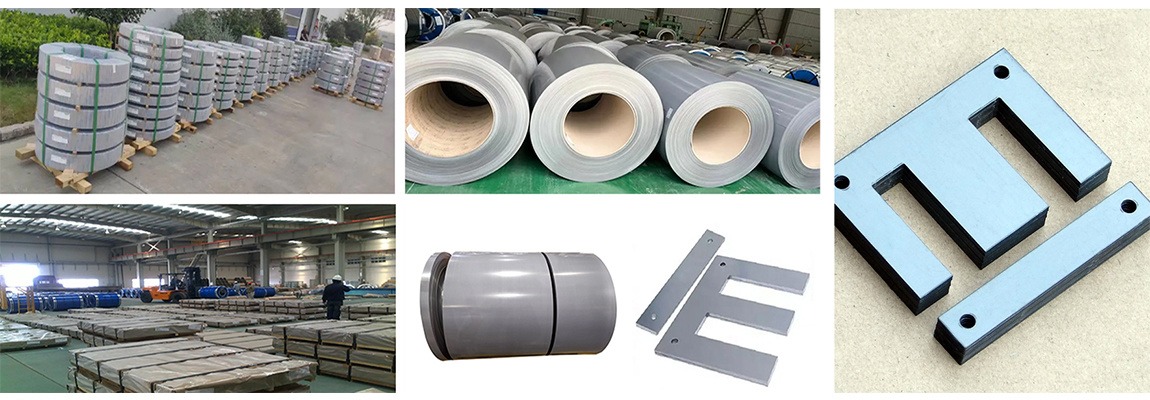

PRODUCT DISPLAY AND PACKAGING



Product Name Cold Rolled Grain Oriented Silicon Steel
Standard B23G110, B27G120, B35G155, B23R080-B27R095
Thickness 0.23mm-0.35mm
Width 20mm-1250mm
Length Coil Or As Required
Technique Cold Rolled
Surface Treatment Coated
Application Widely used in transformers, generators, various household motors and micro-motors, etc.
Special Use Silicon Steel
Sample For Free



CHARACTERISTICS
Magnetic properties
The magnetic properties of the product is featured by its low core loss, high permeability and excellent application performance
Thickness tolerance
The good thickness tolerance is characterized by small difference in thickness in a direction parallel to the direction of rolling, small difference in thickness in a direction perpendicular to the direction of rolling, and high lamination factor.
Processing property
The product is suitable for punching and cutting with excellent dimensional tolerance.
Insulation coating
The insulation coating has small color deviation, good adhesiveness and excellent resistance to heating and corrosion with high insulation coating resistance. There are several types of insulation coating available for production. According to the test results performed by the professional inspection organizations, the contents of hazardous substances comply with all the prevailing international and domestic environment protection laws and regulations including EU RoHS and REACH regulations.

Different insulation coatings are available to meet a range of customer requirements according to interlaminar resistance, corrosion resistance, punchability, weldability and so on.

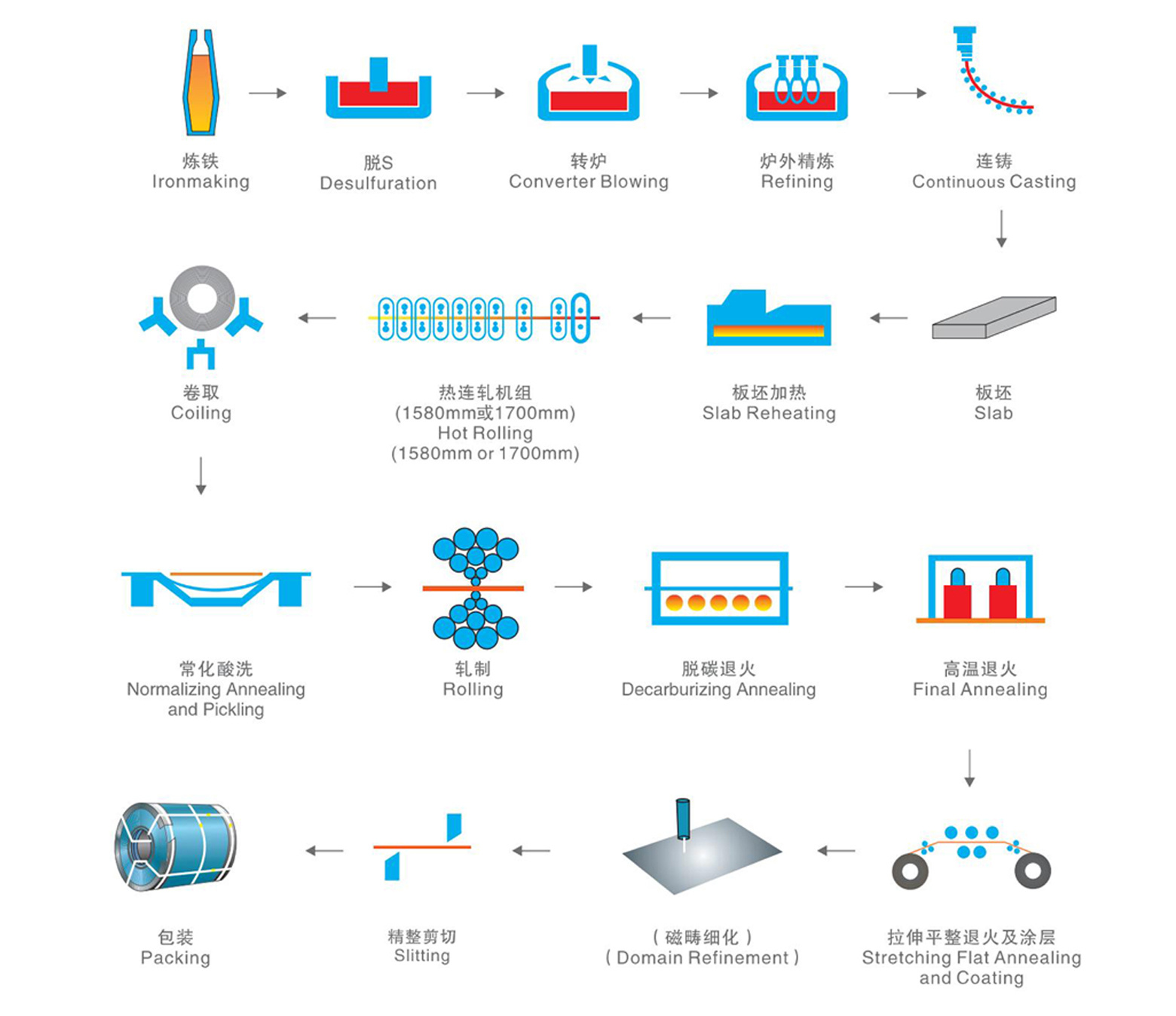

PRODUCTION PROCESS

FAQ

Q1:Can I get samples before order ?

A:Yes, of course.  Usually our samples are free,we can produce by your samples or technical drawings.

Q2:Can I go to your factory to visit?

A:Of course, we welcome customers from all over the world to visit our factory.

Q3:How can I get a quotation from you ?

A:You can leave us message, and we will reply every message in time.  Or we may talk on line.

Q4:What product information do I need to provide?

A:You need to provide the grade, width, thickness, coating and the number of tons you need to purchase.

Q5:Does the product have quality inspection before loading?

A:Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed. we accept the third party inspection absolutely.
